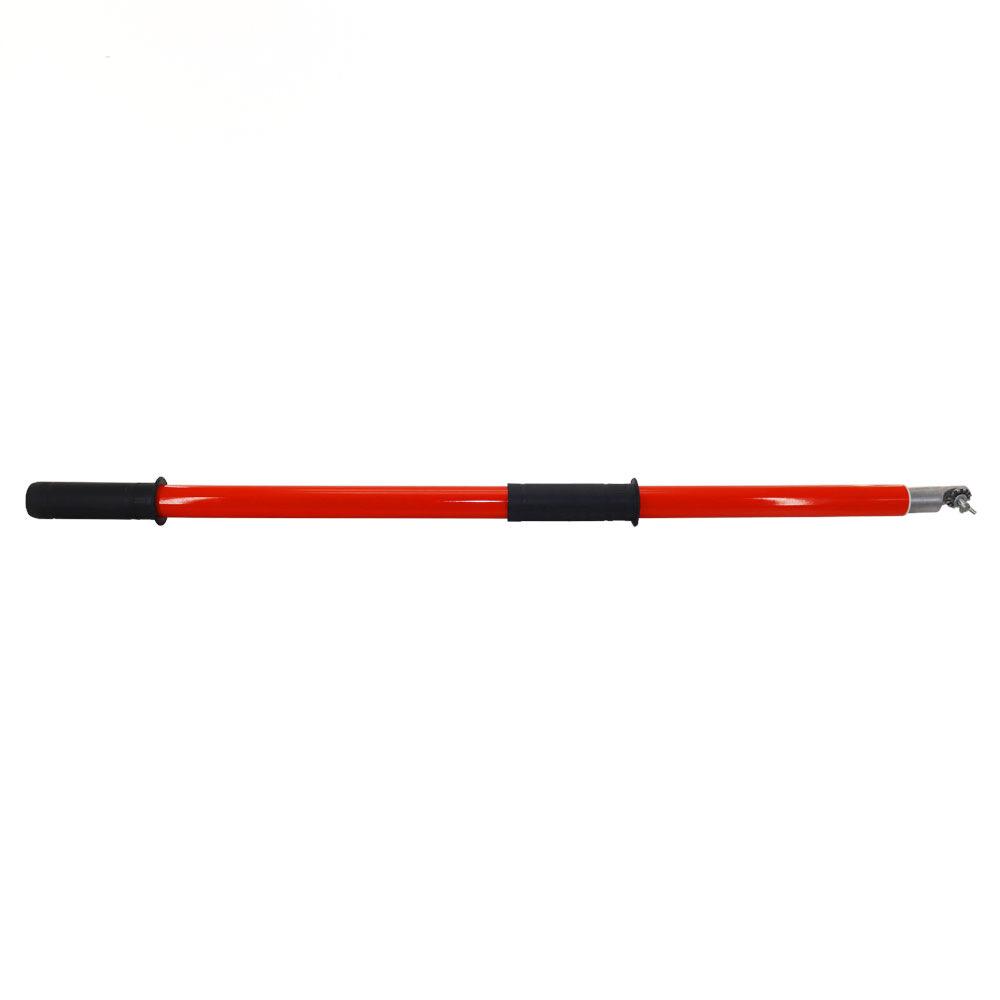

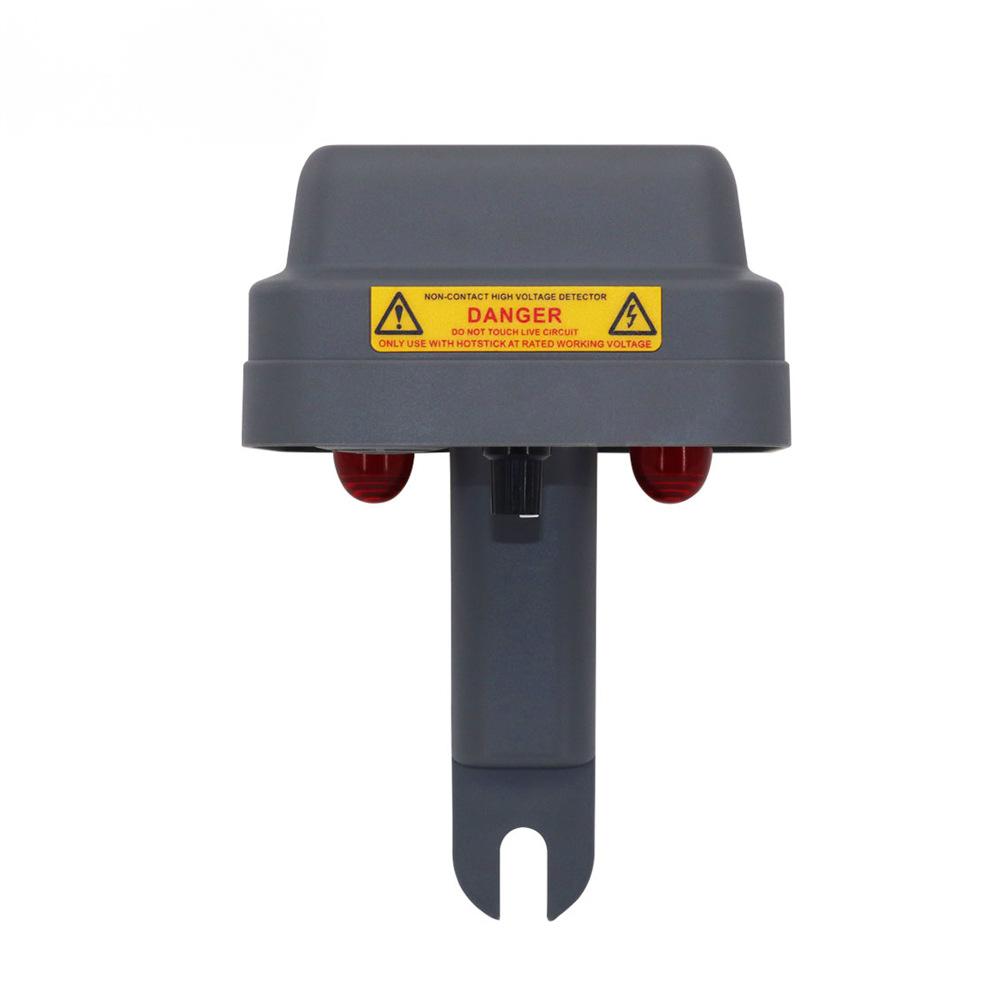

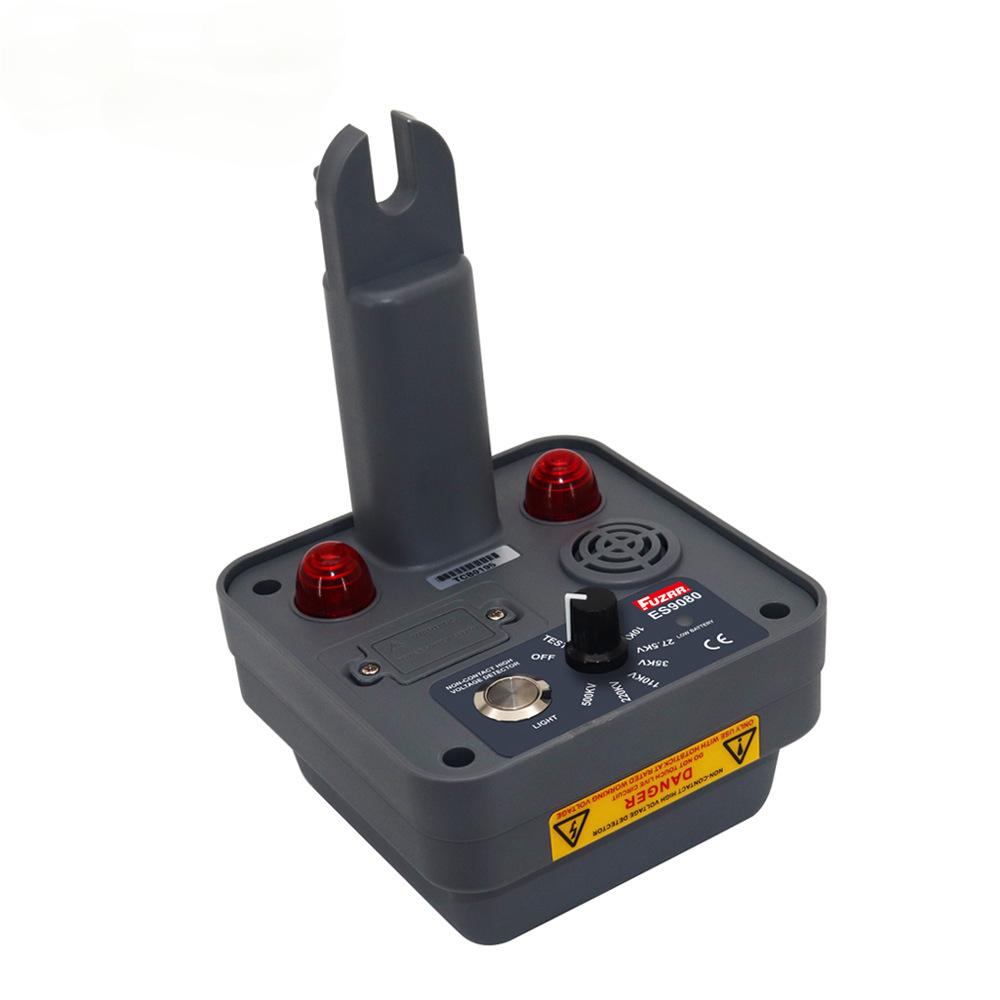

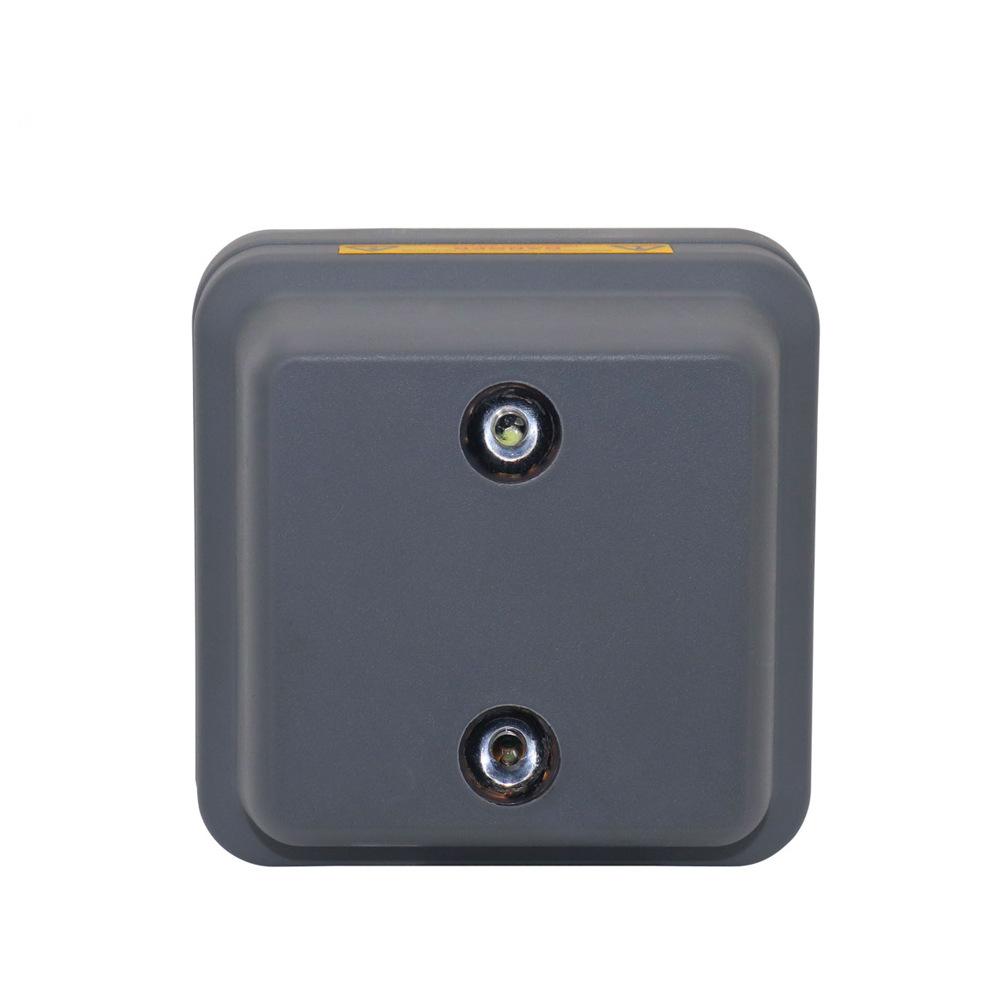

The Non-contact High Voltage Detector features a safe, reliable non-contact design, specifically engineered to detect both AC high and low voltages. It comes with practical functions including audio prompts, visual alerts, self-test capabilities, and compatibility with most insulating rods—covering all key needs for voltage detection.
What's more, the detector stands out with its sleek, premium build. It also offers a wide detection range, user-friendly operation, easy portability, high precision, and reliable, stable performance. Plus, it boasts strong anti-interference capability, making it suitable for various working scenarios.
| Model | ES9080 |
| Function | Voltage detection, cable tracking |
| Power Supply | DC 9V（6F22 1PC）-not included |
| Reference Conditions | 23℃±5℃，Below75%rh |
| Voltage Ranges | 380V；6KV；10KV；27.5KV；35KV；110KV；220KV；500KV |
| Measurement method | Non-contact test |
| Ranges shift | Manual shift |
| Wire location | The measured wire is facing the side with lighting lamp |
| Instrument size | 115mm (L)×115mm (W)×169mm (H) |
| protection class | IP65 |
| Indicating function | Sound and light Indicating when the detection voltage exceeds the setting voltage |
| Power consumption | Max：65mA |
| Weight | 365g |
| Operating temperature and humidity | －10℃～+50℃＜85%R H |
